No other wash-water treatment system is as versatile and modular as the Water Maze CL. The four models can stand alone or, in some cases, be matched with a Filter Pac module to serve as a solids separator, a treat-and-discharge unit or even a recycle system.

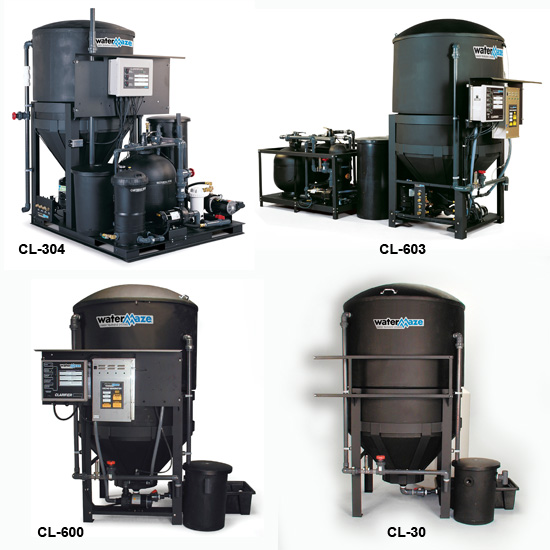

 CL SERIES
- The CL-603 is a full recycling system when matched with the modular Filter Pac III.
- The CL-304 serves as an extra-compact and affordable recycling system engineered to fit on a single platform.
- The CL-600 discharges to the sanitary sewer.
- The CL-30 is ideal as a solids separator in pre-treatment.
Features
- Models with Flow Rates up to 30 GPM
- Self-Contained Yet Modular Flexibility
- Above-Ground Design; No Large, Costly PIts
- Most Uniquely Versatile System in America
| Specifications |
Recycle* |
Recycle |
Discharge |
Solids Separator |
| Model Number |
CL-603 A,B,C
|
CL-304 A,B,C |
CL-600D |
CL-30 A,B,C |
| Maximum Flow Rate |
1-30 GPM
|
1-5 GPM |
1-30 GPM |
1-30 GPM |
| Oil/Water Separator Cap. |
600 gal
|
300 gal |
600 gal |
600 gal |
| Electrical Configuration: A |
230V / 1ph / 22A |
230V / 1ph / 15A |
120V / 1ph / 20A |
230V / 1ph / 4.6A |
| Electrical Configuration: B |
230V / 3ph / 10A |
230V / 3ph / 9A |
|
230V / 3ph / 3.5A |
| Electrical Configuration: C |
460V / 3ph / 8A |
460V / 3ph / 5A |
|
460V / 3ph / 3.0A |
| Solids Separator Chamber |
Yes |
Yes |
Yes |
Yes |
| Sanitizing Method |
Ozone, Series 400 |
Chlorination |
Ozone, Series 400 |
N/A |
| Coalescing Pack |
490 sq. ft. |
94 sq. ft. |
490 sq. ft. |
90 sq. ft. |
| Holding Tanks |
65 gal. |
40 gal. |
N/A |
165 gal. (Clarified) |
| Dimensions (L x W x H) |
60" x 83" x 106" |
72" x 72" x 90" |
60" x 83" x 106" |
60" x 83" x 106" |
| Net Dry Weight (approx) |
975 lbs. |
1545 lbs. |
835 lbs. |
825 lbs. |
* Must add Filter Pac lll in order to recycle wash water with this model.
For more details and information, please download the product brochure.
|
